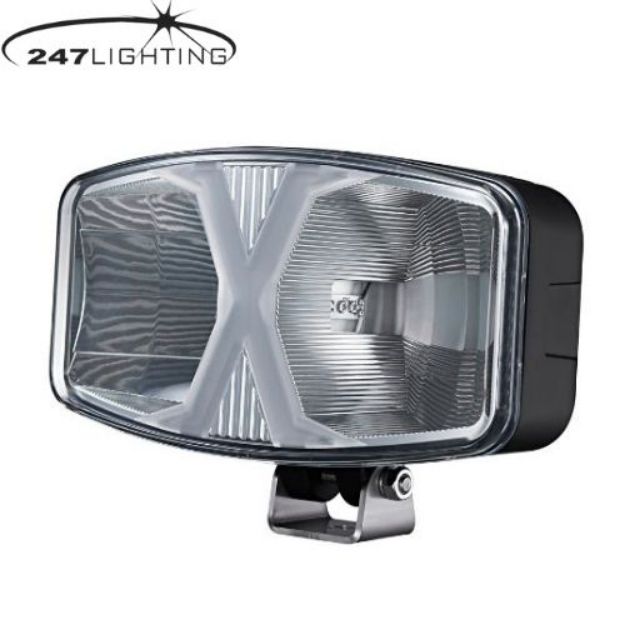

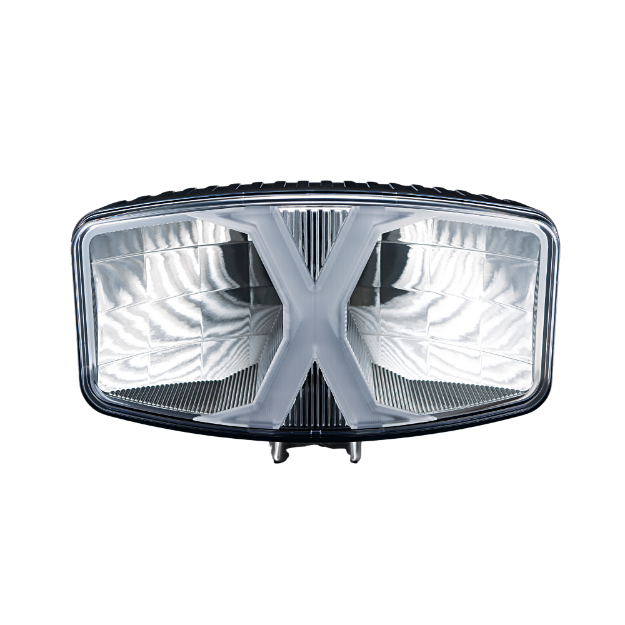

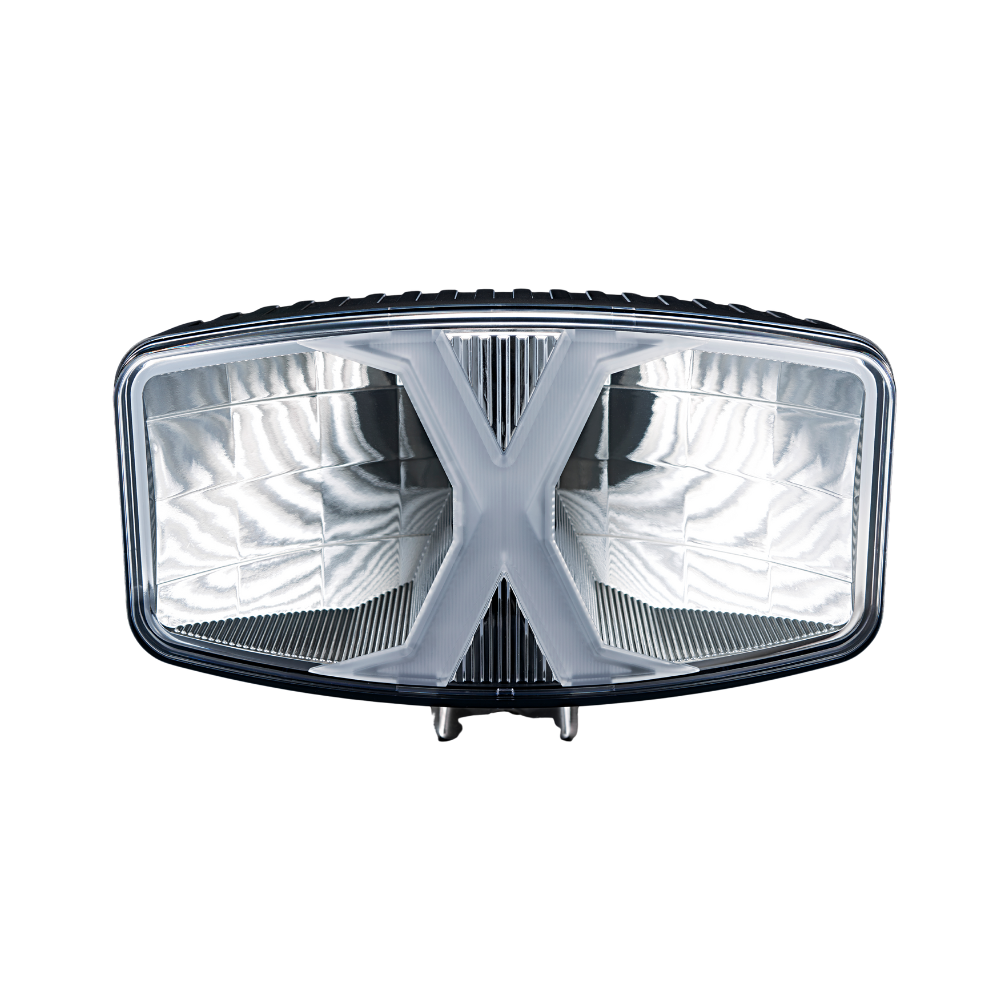

LED-X Driving/Position Lamp

SKU: CA 6162

Availability: In stock

Overview
Contact Us
Attachments

The LED-X Driving & Position Lamp is designed using state-of-the-art technology.
Transform the look of your vehicle with the LED-X's exclusive style that gives a distinctive presence on the road. Using high preforming reliable & efficient LED's for superior illumination, you can count on the LED-X for high light output to maximum your visibility .

With a robust and durable design this LED Driving & Position Lamp has been rigorously tested to comply with Industry & ECE Standards. Housed in strong die-cast aluminium and a polycarbonate lens making this lamp corrosion, shock, and vibration resistant, with an impressive IP69K ingress protection rating.
These lamps have a built-in plug and play connection ensuring an easy installation with minimal time & effort.

High Beam: 2300 Lumens | Position: 432 Lumens
12-24 Volts
33.6 Watts
20 LEDs
IP69K Rated
ECE Approved Reg 7 | Reg 10 | Reg 112
Polycarbonate Lens
Die Cast Aluminium Housing
Stainless Steel Bracket Mount | M8 / M10 Bolt
Deutsch DT04-3P Pin Connection
500mm Cable
400m Beam Distance
Operating Temperature: -30°C to +50°C
Dimensions: 240.1*126.2*102.5mm
Current Draw @ 12V: 2.08A (driving) | 0.42A (position)
Current Draw @ 24V: 1.17A (driving) | 0.23A (position)
